Base

Base module provides two extra nested controls for all child limbs below i.e ‘placement’ and ‘master’ controls of a character. As the name suggests, although not mandatory, this module is useful as a base of any rig.

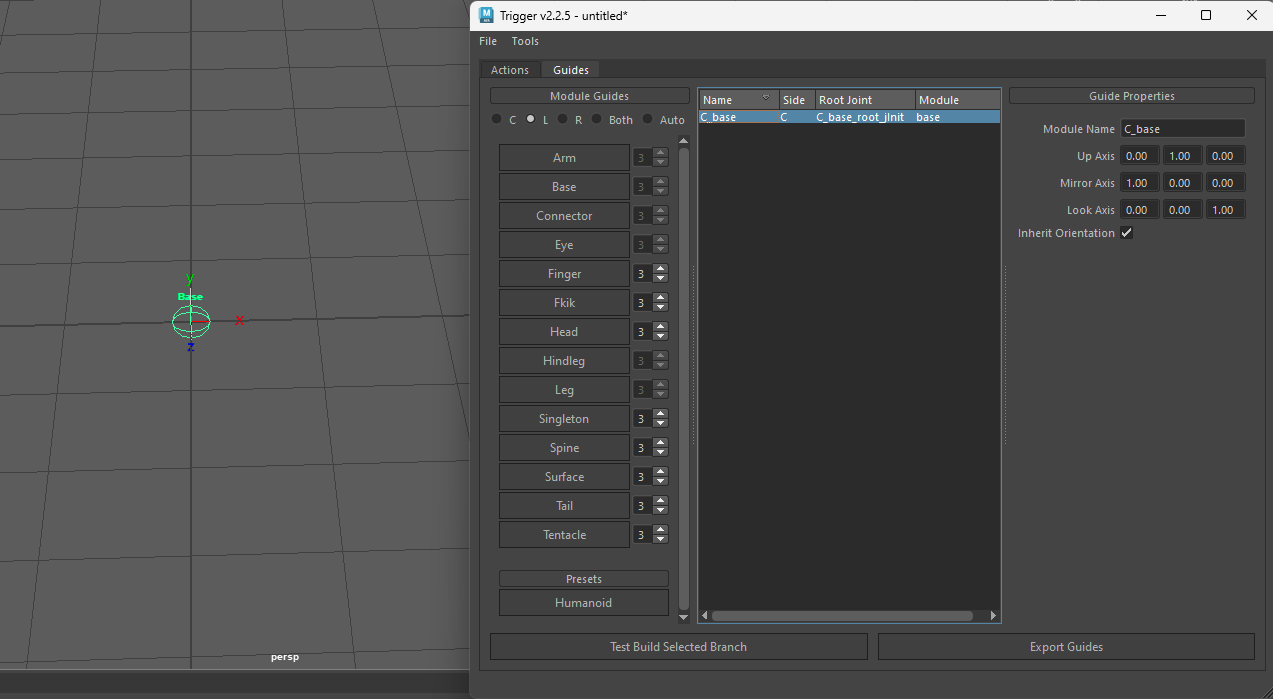

Guides

Base module needs a single joint as guide.

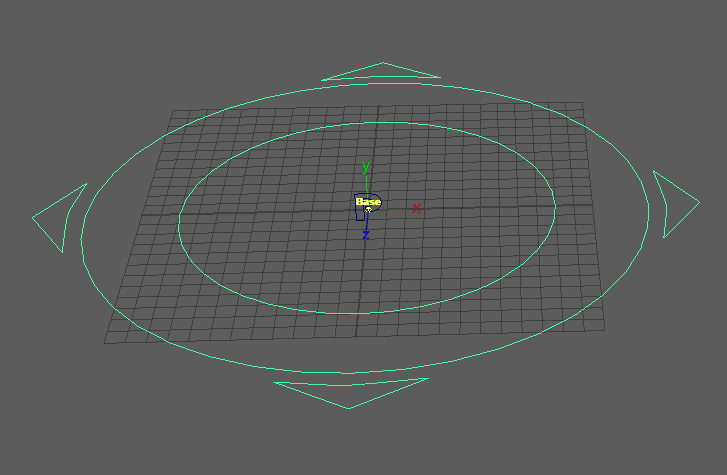

Rig

When rigged, Base module contains 2 nested controllers to drive rest of the limb modules underneath

Tip

Since Base module essentially an utility module it contains no deformation joints (jDef) by default.
